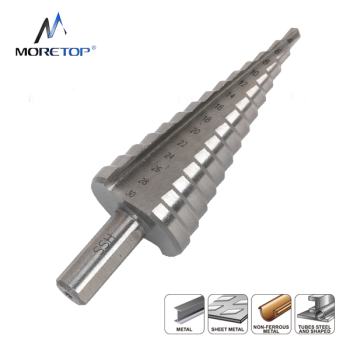

Precision engineered steel bits with 2-flute design and tapered cutting edges allowing
Precision engineered steel bits with 2-flute design and tapered cutting edges allowing for de-burring or chamfering of the hole drilled. Included in the range is a quick-change, hex shank and round.
Titanium coating protects the drill bits from corrosion and rust. Also provides friction reduction which makes it easier to do multiple drills on surfaces such as plastic, aluminum, copper, stainless steel, and other types of sheet metal.
With two-flute design, bit drills faster and more smooth.
Features:
*118 Tip Angle.
*Diameters marked on the bit.
*Helicoidal Flute.
*Shank with three flats.
*Tradesman: Precision Polishing
*Professional: CNC Ground
*Material: HSS 4241/M2/M35
*Surface treatment: Bright/Titanium
Item No. | Drilling Range(mm) | Steps | Shank Dia.(mm) | Working Length (mm) |
---|
13030001 | 4 - 12 | 5 | 6 | 43 |
13030002 | 4 - 12 | 9 | 6 | 40 |
13030003 | 4 - 20 | 9 | 8 | 53 |
13030004 | 4 - 32 | 15 | 10 | 75 |
13030005 | 6 - 38 | 12 | 12 | 75 |
13030006 | 6 - 26.75 | 8 | 8 | 50 |
13030007 | 6 - 32 | 8 | 10 | 50 |
13030008 | 4 - 37 | 12 | 12 | 75 |
13030009 | 5 - 28 | 7 | 8 | 44 |
13030010 | 6 - 37 | 12 | 12 | 75 |
13030011 | 4.8 - 10.65 | 5 | 6 | 29 |
13030012 | 6 - 25 | 7 | 8 | 40 |
13030013 | 6 - 32 | 9 | 10 | 53 |
13030014 | 6 - 40 | 16 | 12 | 80 |
