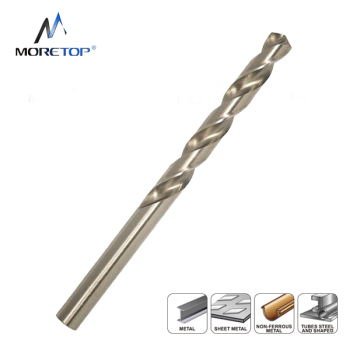

Fully ground spiral groove design clears particles quickly, decreases friction and heat for a faster and cooler drilling
【FULLY GROUND PROCESS】Fully ground spiral groove design clears particles quickly, decreases friction and heat for a faster and cooler drilling performance.
【MULTIPLE APPLICATION】Small Drill bits for soft metal, wood, plastic, steel within 10mm thickness, aluminum alloy and other soft metals. Ideal for DIY projects, household maintenance and repair.×NOT for glass, ceramic or concrete drilling.
Features:
*PRO General Purpose.
*Fully Ground HSS 4341/9341 Material.
*118 Degree Split Point.
DIN340 | | DIN1897 |
---|
|
Item No. | Diameter (mm) | Working Length (mm) | Total Length (mm) | Item No. | Diameter (mm) | Working Length (mm) | Total Length (mm) |
13003001 | 3 | 66 | 100 | 13004001 | 1 | 6 | 26 |
13003002 | 3.2 | 69 | 106 | 13004002 | 1.5 | 9 | 32 |
13003003 | 3.5 | 73 | 112 | 13004003 | 2 | 12 | 38 |
13003004 | 4 | 78 | 119 | 13004004 | 2.5 | 14 | 43 |
13003005 | 4.5 | 82 | 126 | 13004005 | 2.8 | 16 | 46 |
13003006 | 4.8 | 87 | 132 | 13004006 | 3 | 16 | 49 |
13003007 | 5 | 87 | 132 | 13004007 | 3.2 | 18 | 49 |
13003008 | 5.5 | 91 | 139 | 13004008 | 3.5 | 20 | 52 |
13003009 | 6 | 91 | 139 | 13004009 | 4 | 22 | 55 |
13003010 | 6.5 | 97 | 148 | 13004010 | 4.5 | 24 | 58 |
13003011 | 7 | 102 | 156 | 13004011 | 4.8 | 26 | 62 |
13003012 | 7.5 | 102 | 156 | 13004012 | 5 | 26 | 62 |
13003013 | 8 | 109 | 165 | 13004013 | 5.5 | 28 | 66 |
13003014 | 8.5 | 109 | 165 | 13004014 | 6 | 28 | 66 |
13003015 | 9 | 115 | 175 | 13004015 | 6.5 | 31 | 70 |
13003016 | 9.5 | 115 | 175 | 13004016 | 7 | 34 | 74 |
13003017 | 10 | 121 | 184 | 13004017 | 7.5 | 34 | 74 |
13003018 | 10.5 | 121 | 184 | 13004018 | 8 | 36 | 79 |
13003019 | 11.0 | 128 | 195 | 13004019 | 8.5 | 36 | 79 |
13003020 | 11.5 | 128 | 195 | 13004020 | 9 | 40 | 84 |
13003021 | 12.0 | 134 | 205 | 13004021 | 9.5 | 40 | 84 |
13003022 | 12.5 | 134 | 205 | 13004022 | 10 | 43 | 89 |
13003023 | 13.0 | 134 | 205 | | | | |
