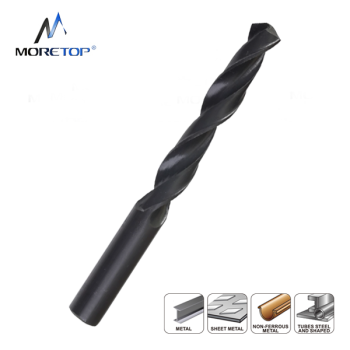

Small Drill bits for soft metal, wood, plastic, steel within 10mm thickness, aluminum alloy and other soft metals.
【MULTIPLE APPLICATION】Small Drill bits for soft metal, wood, plastic, steel within 10mm thickness, aluminum alloy and other soft metals. Ideal for DIY projects, household maintenance and repair.×NOT for glass, ceramic or concrete drilling.
【ROLL FORGED】The rolling process gives the bit a degree of elasticity and reduces the risk of breaking.
Features:
*General Purpose.
*Roll Forged HSS 4241/4341 Material.
*118 Tip Angle.
Item No. | Diameter(mm) | Working Length (mm) | Total Length(mm) |
---|
13001001 | 1.0 | 12 | 34 |
13001002 | 1.5 | 18 | 40 |
13001003 | 2.0 | 24 | 49 |
13001004 | 2.5 | 30 | 57 |
13001005 | 3.0 | 33 | 61 |
13001006 | 3.2 | 36 | 65 |
13001007 | 3.5 | 39 | 70 |
13001008 | 4.0 | 43 | 75 |
13001009 | 4.2 | 43 | 75 |
13001010 | 4.5 | 47 | 80 |
13001011 | 4.8 | 52 | 86 |
13001012 | 5.0 | 52 | 86 |
13001013 | 5.5 | 57 | 93 |
13001014 | 6.0 | 57 | 93 |
13001015 | 6.5 | 63 | 101 |
13001016 | 7 | 69 | 109 |
13001017 | 7.5 | 69 | 109 |
13001018 | 8 | 75 | 117 |
13001019 | 8.5 | 75 | 117 |
13001020 | 9 | 81 | 125 |
13001021 | 9.5 | 81 | 125 |
13001022 | 10 | 87 | 133 |
13001023 | 10.5 | 87 | 133 |
13001024 | 11 | 94 | 142 |
13001025 | 11.5 | 94 | 142 |
13001026 | 12 | 101 | 151 |
13001027 | 12.5 | 101 | 151 |
13001028 | 13 | 101 | 151 |
13005028 | 13 | 101 | 151 |
