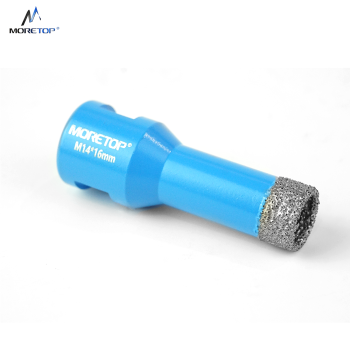

Moretop Vacuum brazed hole saw bits with exposed diamonds are perfect solution for drilling hard materials
Moretop Vacuum Brazed Tile Drill Bit are perfect solution for drilling hard materials including ceramic, porcelain, marble, granite, stone, concrete and composite materials.
Features:
• For making holes in marble, granite, ceramic tiles, composite material and all kinds of hardness stones.
• Vacuum brazed diamond cutting rim.
• Spray painting surface finish.
• Be used for Angle Grinder.
• Dry drilling. No need water cooling.
• Shanks: M14 Thread Shank
• Fits Diamond Milling / Countersink / Holesaw
Item No. | Dia.(mm) | Overall Length(mm) | Diamond height(mm) | Diamond Grit | Wax Filled |
---|
14603001 | 5 | 63 | 10 | 45# | YES |
14603002 | 6 | 63 | 10 | 45# | YES |
14603003 | 8 | 63 | 10 | 45# | YES |
14603004 | 10 | 63 | 10 | 45# | YES |
14603005 | 12 | 63 | 10 | 45# | YES |
14603006 | 14 | 63 | 10 | 45# | YES |
14603007 | 16 | 63 | 10 | 45# | NO |
14603008 | 18 | 63 | 10 | 45# | NO |
14603009 | 20 | 60 | 10 | 45# | NO |
14603010 | 25 | 60 | 10 | 45# | NO |
| 28-90 | 60 | 10 | 45# | NO |
| over 90 | 60 | 10 | 45# | NO |
